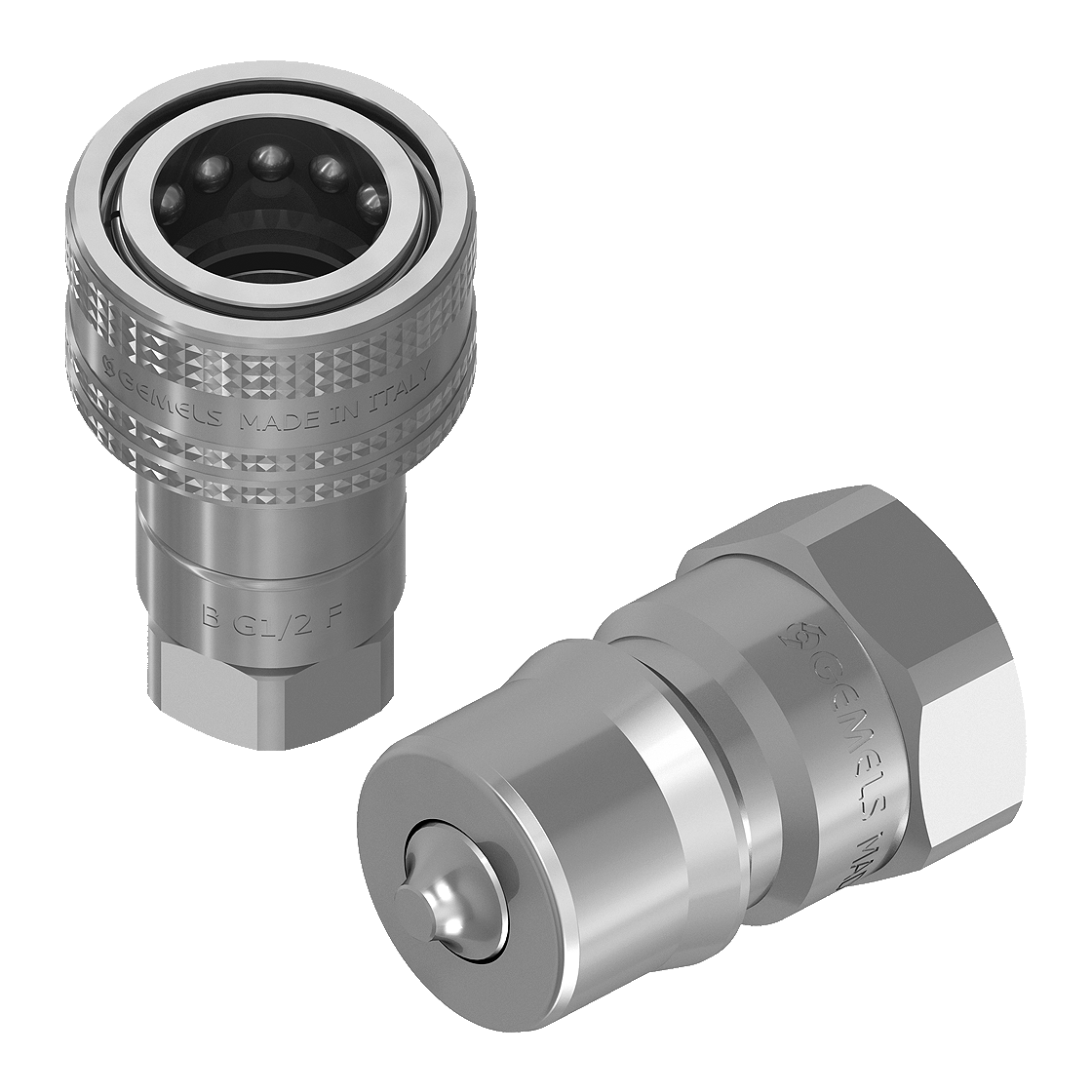

Hidráulica ISO B

ISO 7241/B CON POPPET

innesti rapidi iso B per agricoltura

ISO 7241/B

Ficha técnica

Acero al carbono
Tipo Enchufes rápidos
Dimensiones de DN6 a DN50
Presión hasta PN420
Acero inoxidable
Tipo Enchufes rápidos
Dimensiones de DN6 a DN50
Presión hasta PN300

Características Generales

CAPS disponibles en colores: amarillo, rojo, azul, verde

Detalles técnicos
MALE THREAD METRIC ISO 1179-1 BSPP WITH POPPET
Código del artículo Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flujo máximo l/min Flujo mín-máx l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de Pilotaje Fisuración por presión MPa Presión máxima MPa Presión máxima pico MPa Presión máxima giratoria MPa Presión estática máxima MPa Pressure max working MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Rango de ajuste MPa Establecer normas MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Peso kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC03G010000 QC ISO B G 1/4 MALE 6.3 42 35.5 19 14.2 G1/4 0.036
NC04G010000 QC ISO B G 1/4 FEMALE 6.3 42 28.5 56 19 G1/4 0.128
NC03G020000 QC ISO B G 3/8 MALE 10 42 39 22 19.05 G3/8 0.07
NC04G020000 QC ISO B G 3/8 FEMALE 10 42 35 63 22 G3/8 0.217
NC03G030000 QC ISO B G 1/2 MALE 12.5 42 44 27 23.5 G1/2 0.11
NC04G030000 QC ISO B G 1/2 FEMALE 12.5 42 45 71.5 27 G1/2 0.36
NC03G040000 QC ISO B G 3/4 MALE 20 25 55.5 36 31.45 G3/4 0.22
NC04G040000 QC ISO B G 3/4 FEMALE 20 25 55 90 36 G3/4 0.668
NC03G050000 QC ISO B G 1 MALE 25 25 66 41 37.8 G1 0.3466
NC04G050000 QC ISO B G 1 FEMALE 25 25 63 106 41 G1 1.005
Código del artículo Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flujo máximo l/min Flujo mín-máx l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de Pilotaje Fisuración por presión MPa Presión máxima MPa Presión máxima pico MPa Presión máxima giratoria MPa Presión estática máxima MPa Pressure max working MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Rango de ajuste MPa Establecer normas MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Peso kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC04G08S000 QC ISO B G 2 FEMALE 9 105 142 90 G 2 3.99
NC03G000001 QC ISO B G 1/8 MALE 5 30 31 14 10.8 G1/8 0.02
NC04G000001 QC ISO B G 1/8 FEMALE 5 30 24 50 14 G1/8 0.07
NC03G010001 QC ISO B G 1/4 MALE 6.3 30 37 19 14.1 G1/4 0.036
NC04G010001 QC ISO B G 1/4 FEMALE 6.3 30 28 58.5 19 G1/4 0.128
NC03G020001 QC ISO B G 3/8 MALE 10 25 39 22 19 G3/8 0.07
NC04G020001 QC ISO B G 3/8 FEMALE 10 25 35 64 22 G3/8 0.217
NC03G030001 QC ISO B G 1/2 MALE 12.5 25 45.5 27 23.5 G1/2 0.11
NC04G030001 QC ISO B G 1/2 FEMALE 12.5 25 42 73 27 G1/2 0.36
NC03G040001 QC ISO B G 3/4 MALE 20 25 54 36 31.4 G3/4 0.22
NC04G040001 QC ISO B G 3/4 FEMALE 20 25 52 87.5 36 G3/4 0.668
NC03G050001 QC ISO B G 1 MALE 25 20 63 41 37.8 G1 0.3466
NC04G050001 QC ISO B G 1 FEMALE 25 20 60 103 41 G1 1.005
NC03G06S000 QC ISO B G 1 1/4 MALE 31.5 14 126 65 44.5 G1 1/4 0.64
NC04G06S000 QC ISO B G 1 1/4 FEMALE 31.5 14 74.8 126 65 G1 1/4 1.253
NC03G07S000 QC ISO B G 1 1/2 MALE 40 14 126 65 44.5 G1 1/2 0.89
NC04G07S000 QC ISO B G 1 1/2 FEMALE 40 14 74.8 126 65 G1 1/2 2.13
NC03G08S000 QC ISO B G 2 MALE 50 9 142 90 63.2 G 2 1.714
disegno tecnico Gemels
FEMALE THREAD ASME B1.20.1 NPT WITH POPPET
Código del artículo Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flujo máximo l/min Flujo mín-máx l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de Pilotaje Fisuración por presión MPa Presión máxima MPa Presión máxima pico MPa Presión máxima giratoria MPa Presión estática máxima MPa Pressure max working MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Rango de ajuste MPa Establecer normas MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Peso kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC03N010000 QC ISO B N 1/4 MALE 6.3 42 35.5 19 14.2 N1/4 0.036
NC04N010000 QC ISO B N 1/4 FEMALE 6.3 42 28.5 56 19 N1/4 0.128
NC03N020000 QC ISO B N 3/8 MALE 10 42 39 22 19.05 N3/8 0.07
NC04N020000 QC ISO B N 3/8 FEMALE 10 42 35 63 22 N3/8 0.217
NC03N030000 QC ISO B N 1/2 MALE 12.5 42 44 27 23.5 N1/2 0.11
NC04N030000 QC ISO B N 1/2 FEMALE 12.5 42 45 71.5 27 N1/2 0.36
NC03N040000 QC ISO B N 3/4 MALE 20 25 55.5 36 31.45 N3/4 0.22
NC04N040000 QC ISO B N 3/4 FEMALE 20 25 55 90 36 N3/4 0.668
NC03N050000 QC ISO B N 1 MALE 25 25 66 41 37.8 N1 0.3466
NC04N050000 QC ISO B N 1 FEMALE 25 25 63 106 41 N1 1.005
Código del artículo Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flujo máximo l/min Flujo mín-máx l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de Pilotaje Fisuración por presión MPa Presión máxima MPa Presión máxima pico MPa Presión máxima giratoria MPa Presión estática máxima MPa Pressure max working MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Rango de ajuste MPa Establecer normas MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Peso kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC03N00S000 QC ISO B N 1/8 MALE 5 30 31 14 10.8 N1/8 0.02
NC04N00S000 QC ISO B N 1/8 FEMALE 5 30 24 50 14 N1/8 0.07
NC03N01S000 QC ISO B N 1/4 MALE 6.3 30 37 19 14.1 N1/4 0.036
NC04N01S000 QC ISO B N 1/4 FEMALE 6.3 30 28 58.5 19 N1/4 0.128
NC03N02S000 QC ISO B N 3/8 MALE 10 25 39 22 19 N3/8 0.07
NC04N02S000 QC ISO B N 3/8 FEMALE 10 25 35 64 22 N3/8 0.217
NC03N03S000 QC ISO B N 1/2 MALE 12.5 25 45.5 27 23.5 N1/2 0.11
NC04N03S000 QC ISO B N 1/2 FEMALE 12.5 25 42 72 27 N1/2 0.36
NC03N04S000 QC ISO B N 3/4 MALE 20 25 54 36 31.4 N3/4 0.22
NC04N04S000 QC ISO B N 3/4 FEMALE 20 25 52 87.5 36 N3/4 0.668
NC03N05S000 QC ISO B N 1 MALE 25 20 63 41 37.8 N1 0.3466
NC04N05S000 QC ISO B N 1 FEMALE 25 20 60 103 41 N1 1.005
NC03N06S000 QC ISO B N 1 1/4 MALE 31.5 14 126 65 44.5 N1 1/4 0.64
NC04N06S000 QC ISO B N 1 1/4 FEMALE 31.5 14 74.8 126 65 N1 1/4 1.253
NC03N07S000 QC ISO B N 1 1/2 MALE 40 14 126 65 44.5 N1 1/2 0.89
NC04N07S000 QC ISO B N 1 1/2 FEMALE 40 14 74.8 126 65 N1 1/2 2.13
NC03N08S000 QC ISO B N 2 MALE 50 9 142 90 63.2 N 2 1.714
NC04N08S000 QC ISO B N 2 FEMALE 50 9 105 142 90 N 2 3.99
disegno tecnico Gemels
FEMALE THREAD ISO 11926-1 (SAE J1926-1) ORB WITH POPPET_1
Código del artículo Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flujo máximo l/min Flujo mín-máx l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de Pilotaje Fisuración por presión MPa Presión máxima MPa Presión máxima pico MPa Presión máxima giratoria MPa Presión estática máxima MPa Pressure max working MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Rango de ajuste MPa Establecer normas MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Peso kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC03S010000 QC ISO B SAE4 MALE 6.3 42 35.5 19 14.2 SAE4 0.036
NC04S010000 QC ISO B SAE4 FEMALE 6.3 42 28.5 56 19 SAE4 0.128
NC03S020000 QC ISO B SAE6 MALE 10 42 39 22 19.05 SAE6 0.07
NC04S020000 QC ISO B SAE6 FEMALE 10 42 35 63 22 SAE6 0.217
NC03S030000 QC ISO B SAE8 MALE 12.5 42 44 27 23.5 SAE8 0.11
NC04S030000 QC ISO B SAE8 FEMALE 12.5 42 45 71.5 27 SAE8 0.36
NC03S040000 QC ISO B SAE12 MALE 20 25 55.5 36 31.45 SAE12 0.22
NC04S040000 QC ISO B SAE12 FEMALE 20 25 55 90 36 SAE12 0.668
NC03S050000 QC ISO B SAE16 MALE 25 25 66 41 37.8 SAE16 0.3466
NC04S050000 QC ISO B SAE16 FEMALE 25 25 63 106 41 SAE16 1.005
Código del artículo Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flujo máximo l/min Flujo mín-máx l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de Pilotaje Fisuración por presión MPa Presión máxima MPa Presión máxima pico MPa Presión máxima giratoria MPa Presión estática máxima MPa Pressure max working MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Rango de ajuste MPa Establecer normas MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Peso kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC03S01S000 QC ISO B SAE4 MALE 6.3 30 37 19 14.1 SAE4 0.036
NC04S01S000 QC ISO B SAE4 FEMALE 6.3 30 28 58.5 19 SAE4 0.128
NC03S02S000 QC ISO B SAE6 MALE 10 25 39 22 19 SAE6 0.07
NC04S02S000 QC ISO B SAE6 FEMALE 10 25 35 64 22 SAE6 0.217
NC03S03S000 QC ISO B SAE8 MALE 12.5 25 45.5 27 23.5 SAE8 0.11
NC04S03S000 QC ISO B SAE8 FEMALE 12.5 25 42 72 27 SAE8 0.36
NC03S04S000 QC ISO B SAE12 MALE 20 25 54 36 31.4 SAE12 0.22
NC04S04S000 QC ISO B SAE12 FEMALE 20 25 52 87.5 36 SAE12 0.668
NC03S05S000 QC ISO B SAE16 MALE 25 20 63 41 37.8 SAE16 0.3466
NC04S05S000 QC ISO B SAE16 FEMALE 25 20 60 103 41 SAE16 1.005
NC03S06S000 QC ISO B SAE20 MALE 31.5 35 126 65 44.5 SAE20 0.64
NC04S06S000 QC ISO B SAE20 FEMALE 31.5 35 74.8 126 65 SAE20 1.253
NC03S07S000 QC ISO B SAE24 MALE 40 35 126 65 44.5 SAE24 0.89
NC04S07S000 QC ISO B SAE24 FEMALE 40 35 74.8 126 65 SAE24 2.13
NC03S08S000 QC ISO B SAE32 MALE 50 35 142 90 63.2 SAE32 1.714
NC04S08S000 QC ISO B SAE32 FEMALE 50 35 105 142 90 SAE32 3.99
disegno tecnico Gemels
Descargar: Catálogos y planos

QUICK COUPLINGS ISO B

DATASHEET
